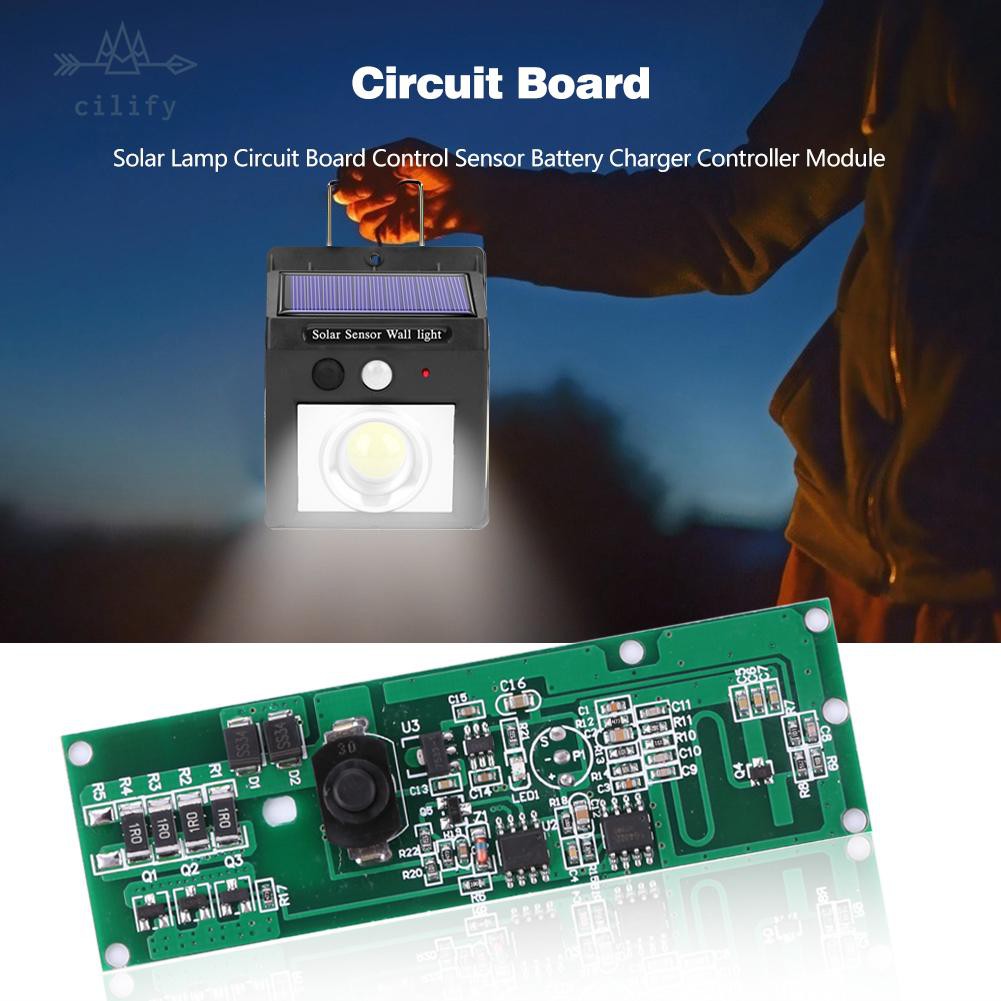

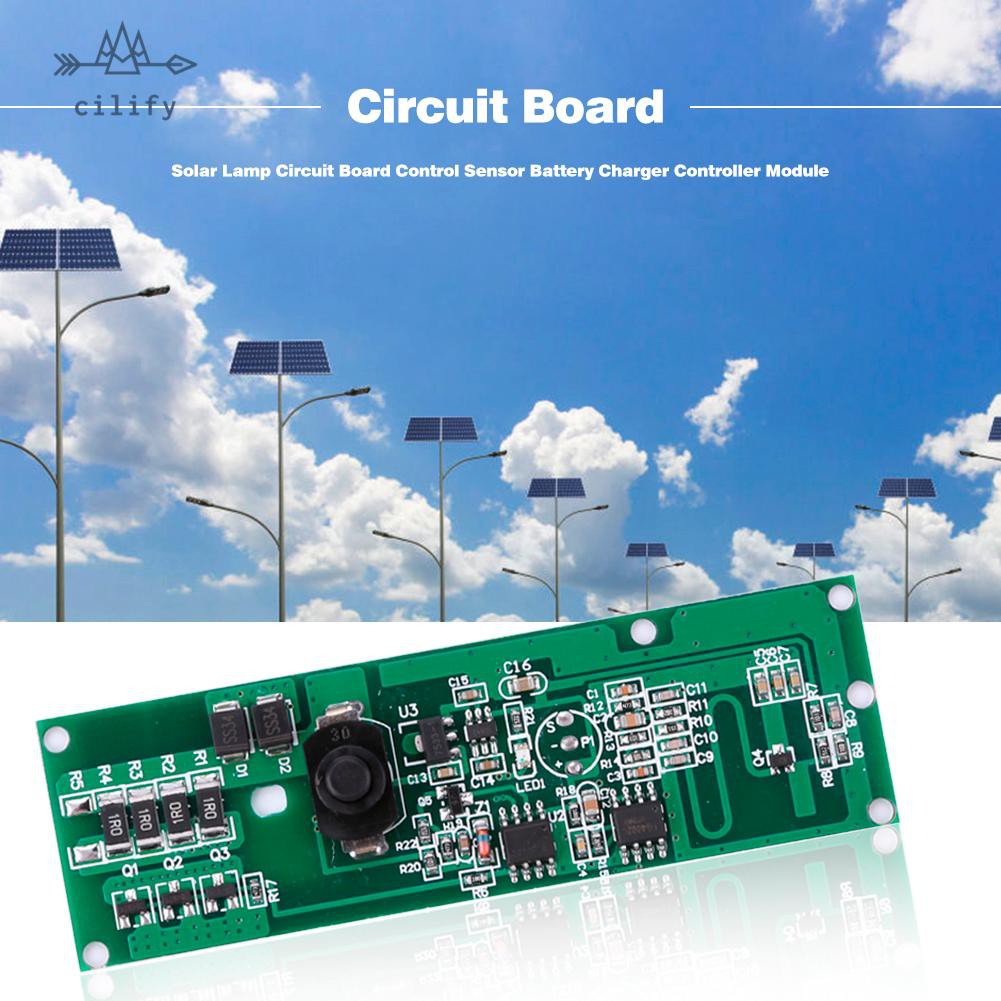

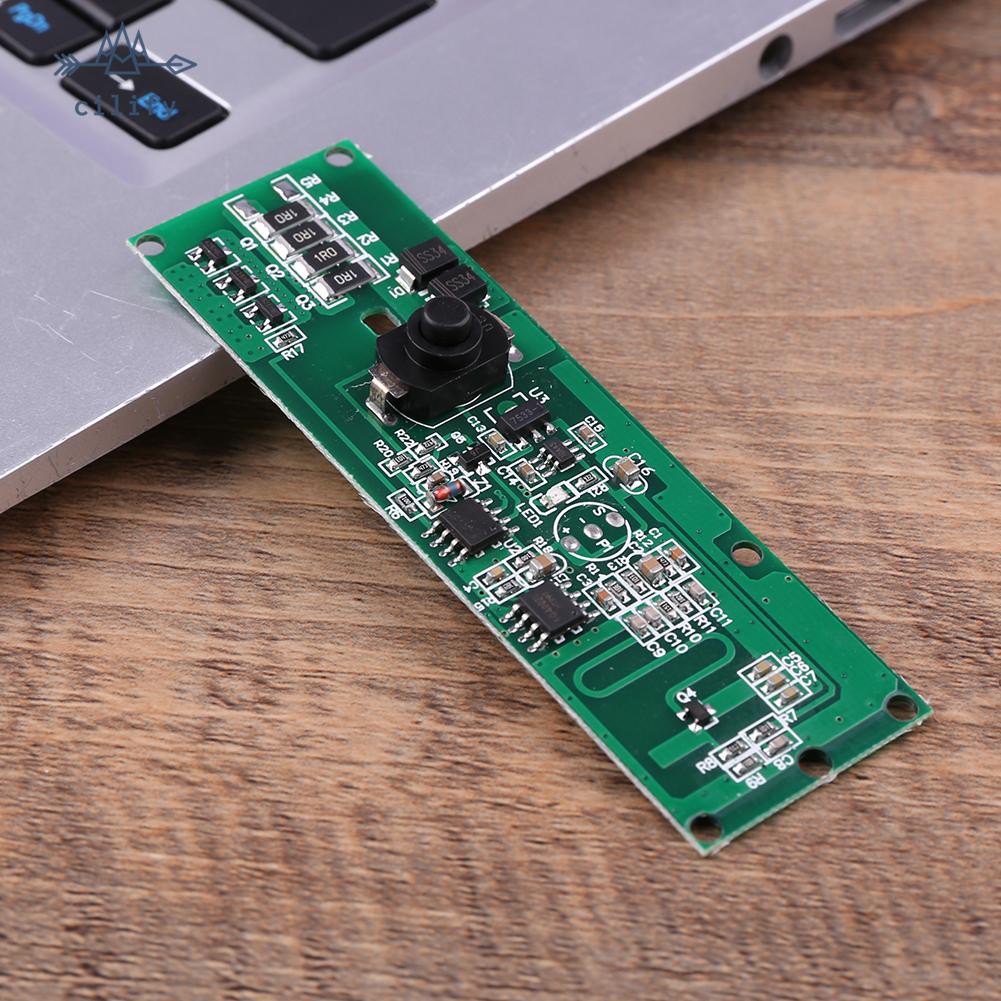

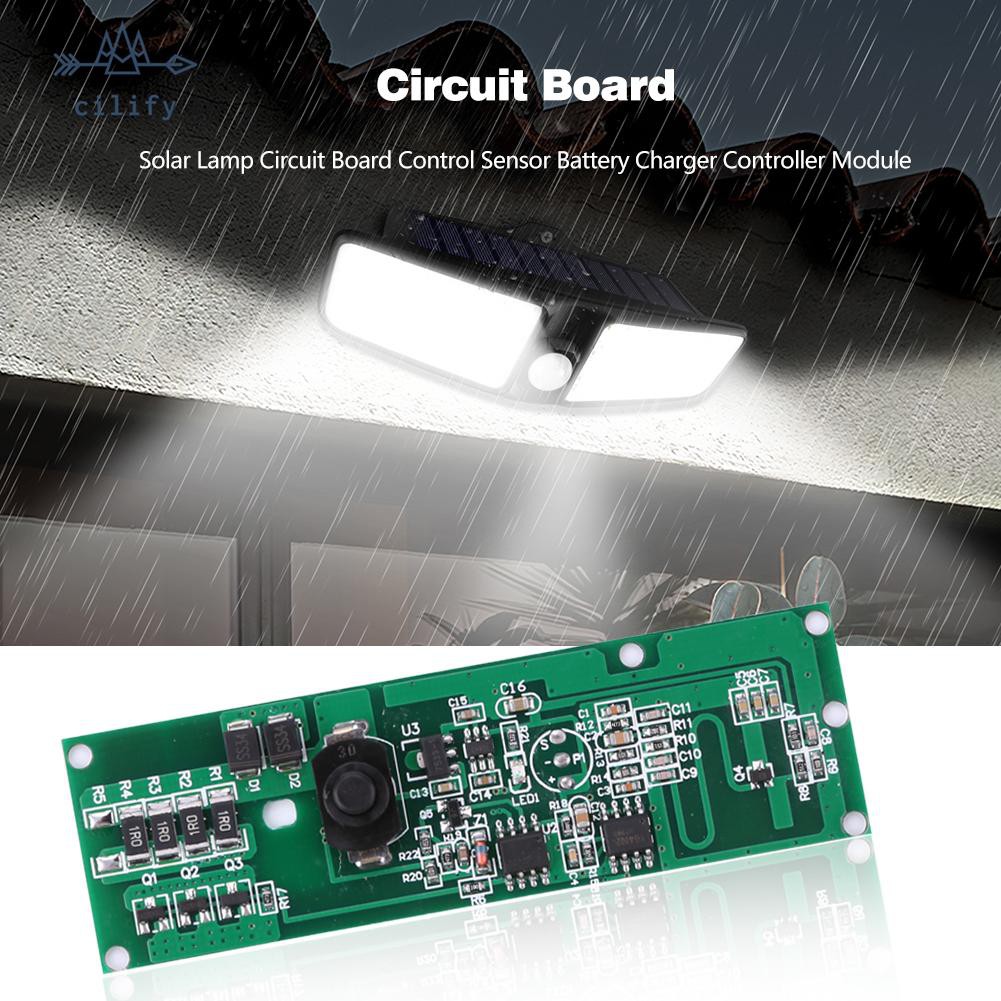

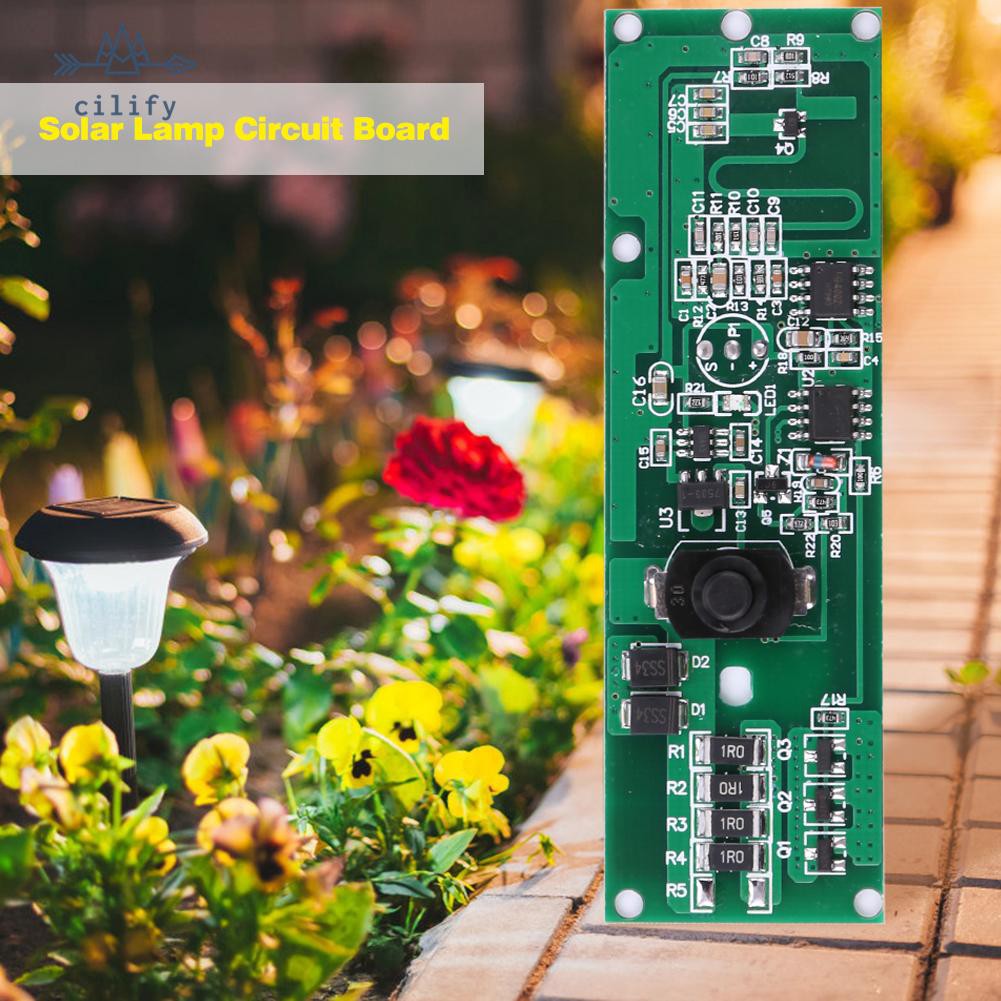

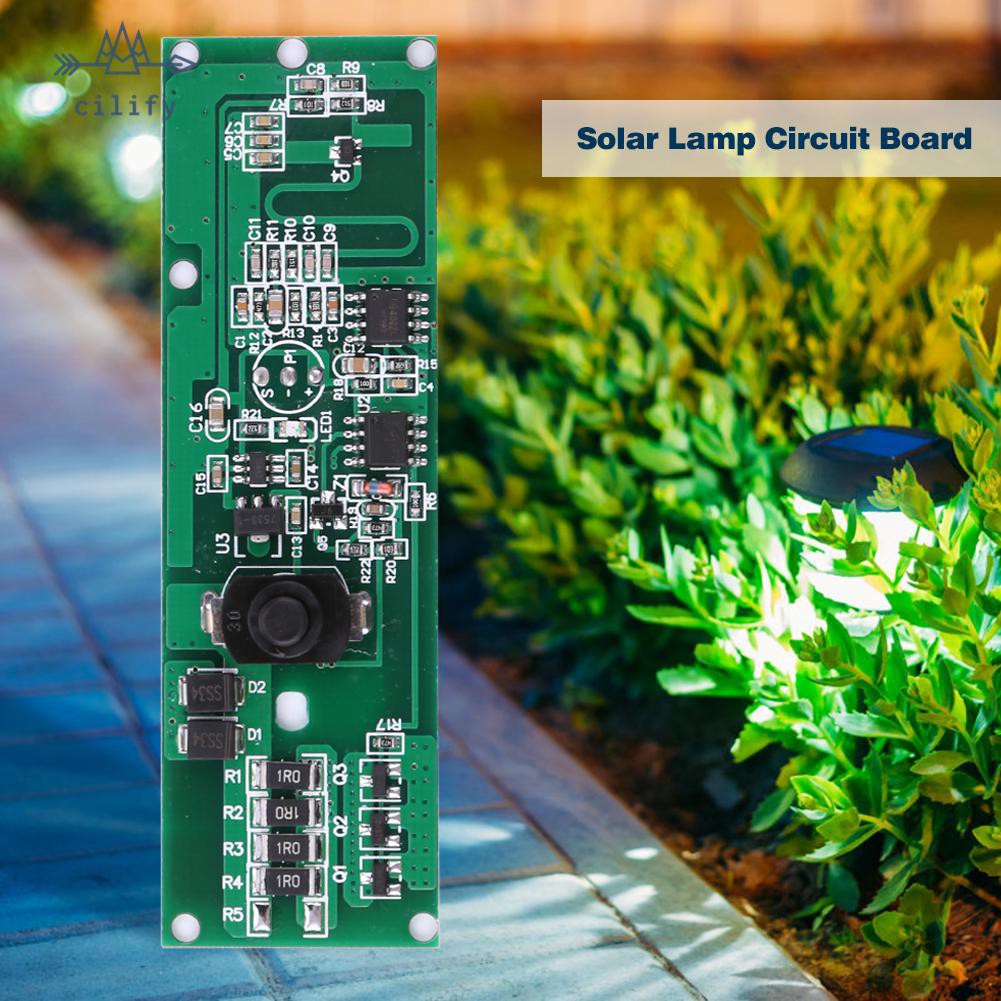

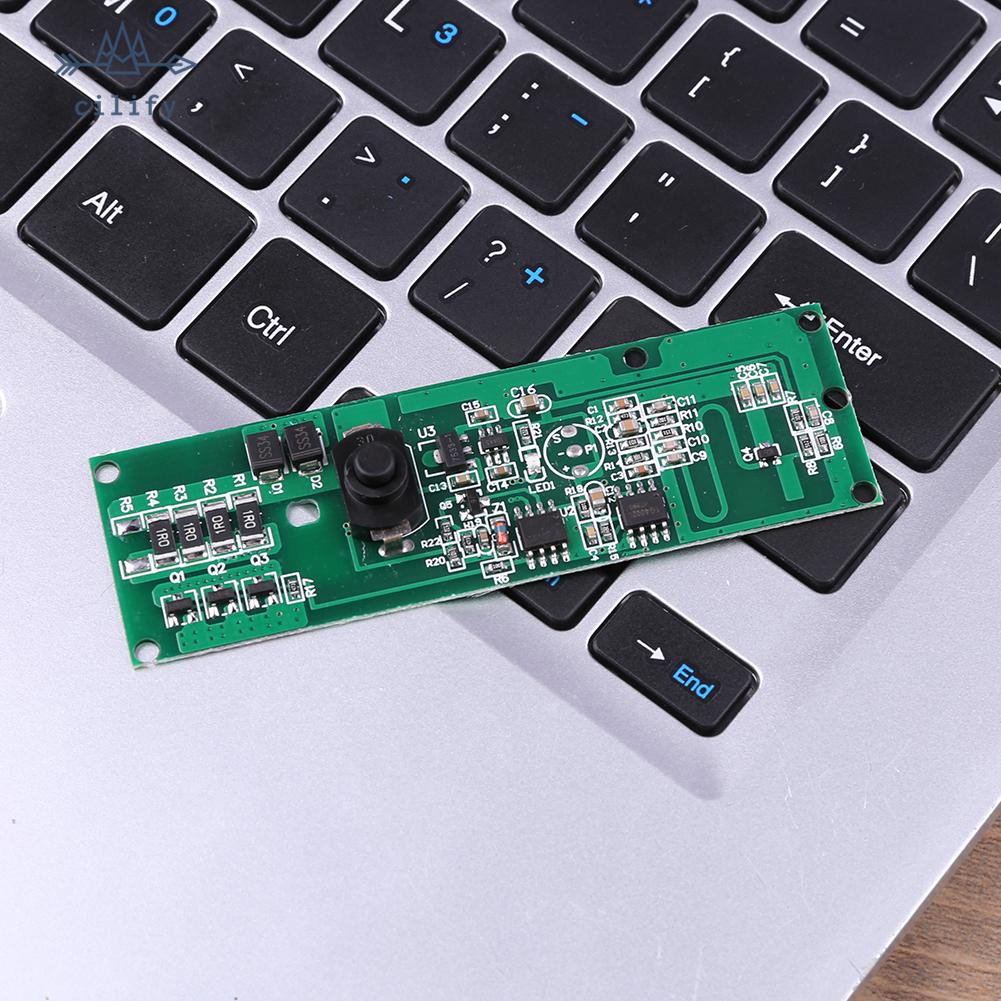

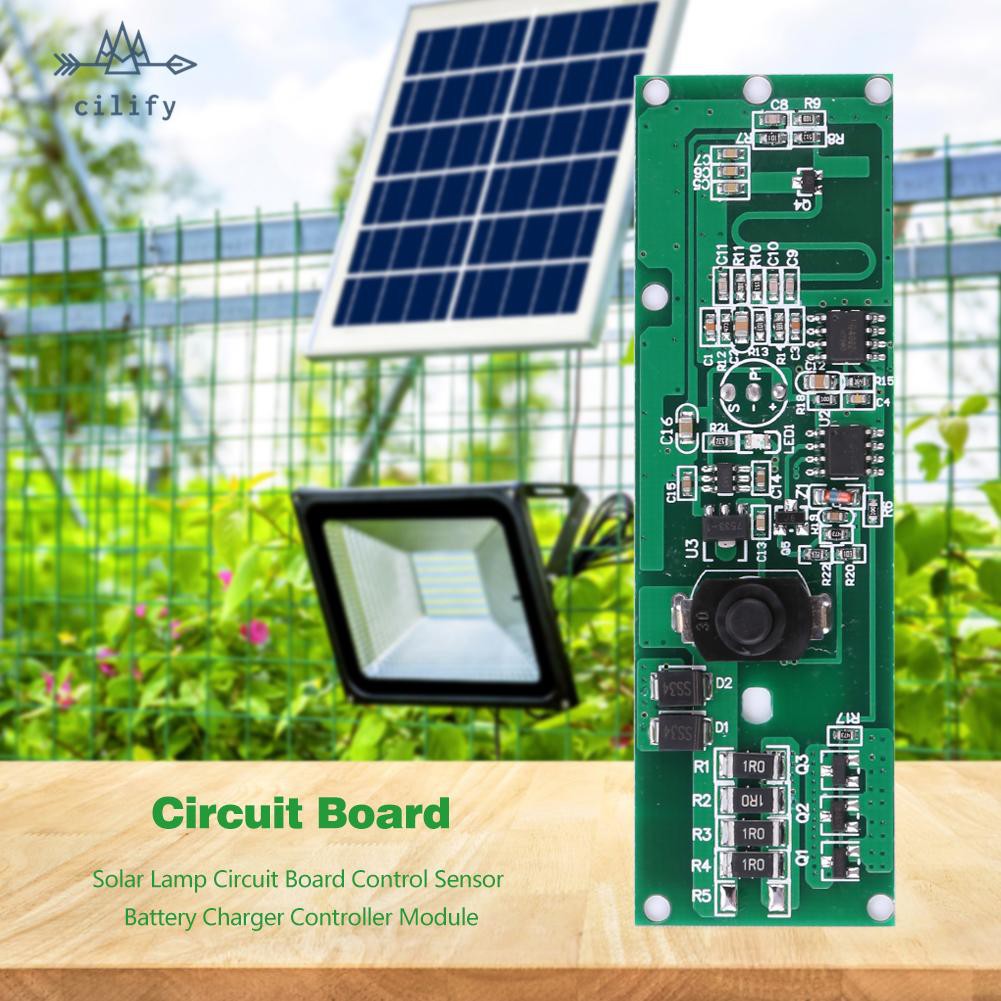

โมดูลควบคุมการชาร์จแบตเตอรี่พลังงานแสงอาทิตย์

Specifications:

Material: ABS

Size: 74*26*10mm/2.91*1.02*0.39"

Purpose:Controller for Solar Wall Lamp.

Light mode:

Automatically turn off the light during the day and turn on the light by human body induction at night.

Induction mode: microwave radar induction

Induction Distance: 6-10m

Induction time: 15 seconds high brightness, normally-on at weak light

Battery input: 3.2V/3.7V

Output power: <10W

Note:

There is no overcharge and overdischarge protection.

Batteries should be connected with their own protective plates.

Notes for testing:

1. When testing the induction mode, there is no movement of objects within 12 meters, including the movement of hands and feet. Otherwise, it will be tested.

2. When multiple induction modules are together, they may interfere with each other, resulting in insensitive induction or false triggering.

3. The surface of the patch part is the launching surface. It can't stick adhesive and glue. It can't be covered by metal.

4. The distance between the po...
